BRKT-19DR-4U Rackmount DIN-Rail Adapter

Product ID
BRKT-19DR-4U

Availability

DESCRIPTION

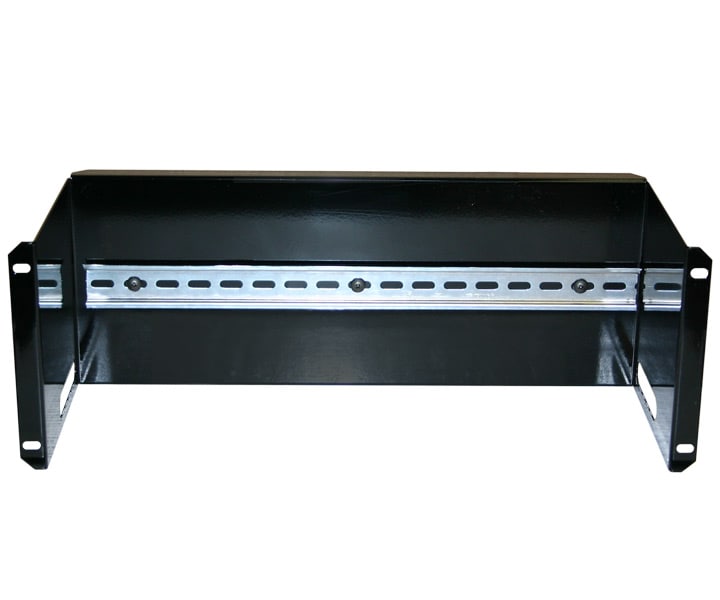

DINSpace 19-inch Rackmount DIN-Rail Adapter without cable management, 4U.

SNAP 19" rackmount DIN-Rail adapter brackets allow you to mount standard 35mm DIN-Rail devices within your 19" rack or cabinet. Constructed of heavy-duty powder-coated 16-gauge steel, the adapter brackets each support up to 50 pounds of weight. Available in two configurations, the 5U version features a built-in cable management system to help keep your cables organized, while the slender 4U design allows you to optimize your cabinet storage capacity.

Benefits

• One-piece construction with no assembly required
• Keeps cabinet tidy with optional cable management
• Rugged steel construction with lifetime warranty
• Supports up to 50lbs of DIN-Rail equipment

Specifications

• Ambient Conditions
  • Operating temperature: -40 deg. C - 80 deg. C
  • Storage/transport temperature: -40 deg. C - 80 deg. C
• Rack Dimensions
  • BRKT-19DR-4U: (H x D x W) 6.75" x 6.75" x 19"
  • Mounting: 19" rackmount via four mounting holes
  • Weight: 5lbs.
  • Protection class: IP20
• Materials of Construction
  • Body: 16-gauge powder-coat painted steel
  • DIN-Rail: Steel
• Warranty
  • Manufacturer's lifetime warranty on materials and workmanship
• Scope of Delivery
  • BRKT-19DR-4U: Rackmount adapter

Additional Information

• CAD DWG Templates
  • SNAP Bracket Adapters (DWG format)

• Product Specification Boilerplate
  • SNAP Bracket Adapters (Word format)
