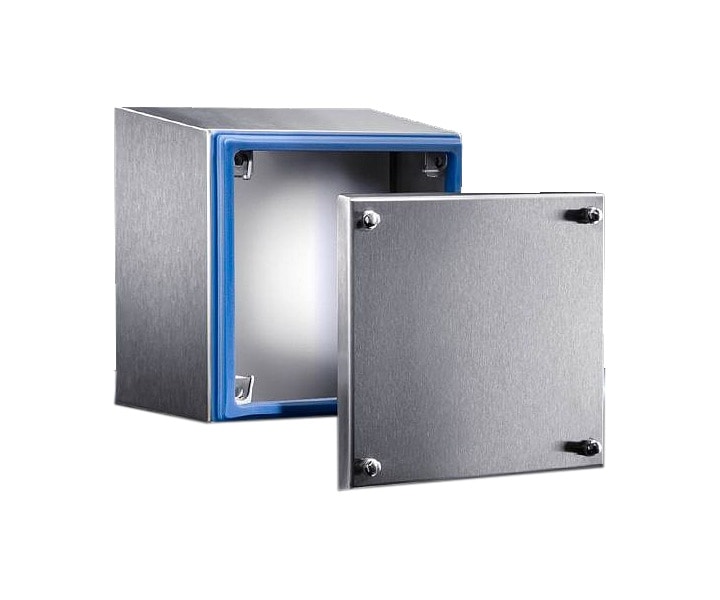

Rittal Hygienic Design HD Terminal Boxes
Rittal Hygienic Design HD Terminal Boxes
Product ID
Rittal Hygienic Design HD Terminal Boxes
Availability
DESCRIPTIONRittal Hygienic Design HD Terminal Boxes, 3 Degree Angled Body, Nema 4 x , IP69K, Screw Down Cover, FDA Compliant Blue Silicone Gasket, 400 Grain Brushed Type 304 Stainless Steel. Back Panel Sold Separately. (Please Specify Size.)
Hygienic standards for high productivity and reliability
“Rittal – The System.” stands for cleverly thought-out system solutions for hygienic production in the food industry. Particularly in open processes, where the resistance of the seal to detergents and disinfectants is crucial, it is vital for the production plant to be equipped with optimized enclosures, terminal boxes and command panels.
Cleanliness assured
Terminal boxes and compact enclosures in Hygienic Design (HD) are key elements in the
design of open processes in the food industry and clean rooms due to their ease of cleaning.
Compatible accessories such as wall spacer brackets and HD-compatible cable glands complete the range. If you have specific requirements, “Rittal – The System.” is sure to have the right solution.
Hygienic Design terminal boxes and compact enclosures are crucial elements when designing open processes in the food and beverage industry and for hygienic zones where ease of cleaning is crucial.
Features & Benefits- Silicone seal: Highly resistant to aggressive media; easily
replaced
- Inclined roof: Prevents pooling of liquids, and ensures
that surfaces are readily visible
- Slot-free design:No hollow spaces between the enclosure and door Fine brushed surface finish makes it easier to clean: Fully sealed enclosures with a uniform 400 grain size brushed finish for a uniform surface roughness of < 8 μm
- Easy-to-clean lock system: Tailored to the requirements of
the food and consumables industry
- Interior installation:
- HD terminal boxes can accommodate support rails
and KL mounting plates, thanks to the flexible
6.25 mm pitch pattern of installation holes
Silicone seal
- All-around external, joint-free silicone seal
- Easy to replace
- Guides and fixes the lid to the screw fasteners
- All-around tilt for terminal boxes
- Enclosure: 3 degree
- Lid: 10 degree
Interior configuration
- Hole pitch of 6.25 mm for greater flexibility
- KL support rails and mounting plates can be fitted directly
Screw fastener
- Captive
- With external seal
- Hexagon shape for perfect cleanliness
