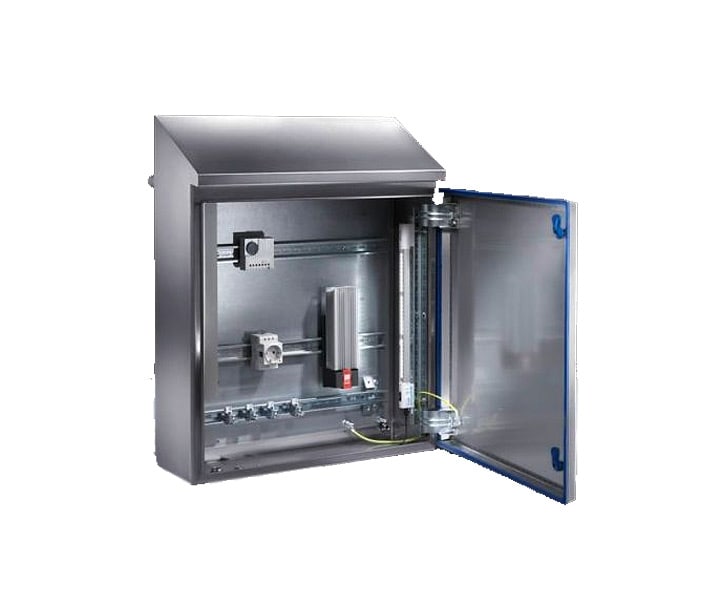

Rittal Hygienic Design HD Compact Enclosure

Product ID
Rittal Hygienic Design HD Compact Enclosure

Availability

DESCRIPTION

Rittal Hygienic Design HD Compact Enclosure, 30 Degree Sloped Top, Nema 4 x , IP69K, SS Cam Lock, FDA Compliant Blue Silicone Gasket, 400 Grain Brushed Type 304 Stainless Steel. Back Panel Included. (Please Specify Size.)

Please Note: Enclosures may require being shipped on a pallet, which may incur additional shipping charges than those calculated using the shipping methods offered within the cart at check-out.  INS will contact the customer for authorization prior to shipment in these cases.

Hygienic standards for high productivity and reliability

“Rittal – The System.” stands for cleverly thought-out system solutions for hygienic production in the food industry. Particularly in open processes, where the resistance of the seal to detergents and disinfectants is crucial, it is vital for the production plant to be equipped with optimized enclosures, terminal boxes and command panels.

Cleanliness assured
Terminal boxes and compact enclosures in Hygienic Design (HD) are key elements in the design of open processes in the food industry and clean rooms due to their ease of cleaning. Compatible accessories such as wall spacer brackets and HD-compatible cable glands complete the range. If you have specific requirements, “Rittal – The System.” is sure to have the right solution.

Hygienic Design terminal boxes and compact enclosures are crucial elements when designing open processes in the food and beverage industry and for hygienic zones where ease of cleaning is crucial.

Features & Benefits

• Silicone seal: Highly resistant to aggressive media; easily replaced
• Inclined roof: Prevents pooling of liquids, and ensures that surfaces are readily visible
• Slot-free design:No hollow spaces between the enclosure and door Fine brushed surface finish makes it easier to clean: Fully sealed enclosures with a uniform 400 grain size brushed finish for a uniform surface roughness of < 8 μm
• Easy-to-clean lock system: Tailored to the requirements of the food and consumables industry
• Interior installation:
  • Attachment points for fitting interior installation rails, for individual installation in the depth with HD compact enclosures

Hinges and seal

• Hinges that are inside the sealing zone create an exceptionally easyclean design on the outside
• The durable all-around, external silicone seal effectively prevents all gaps
• Installed sealing frames are easily replaced
• No external cavity between enclosure and door
• Seal dyed blue to clearly distinguish it from foodstuffs

Lock and lock insert

• External parts made of stainless steel
• Material and shape allow easy and reliable cleaning

Roof angled forwards

• The roof angled forwards by 30 degree on compact enclosures prevents objects from being deposited on it
• Is easily inspected
• Allows fluids to drain off rapidly
