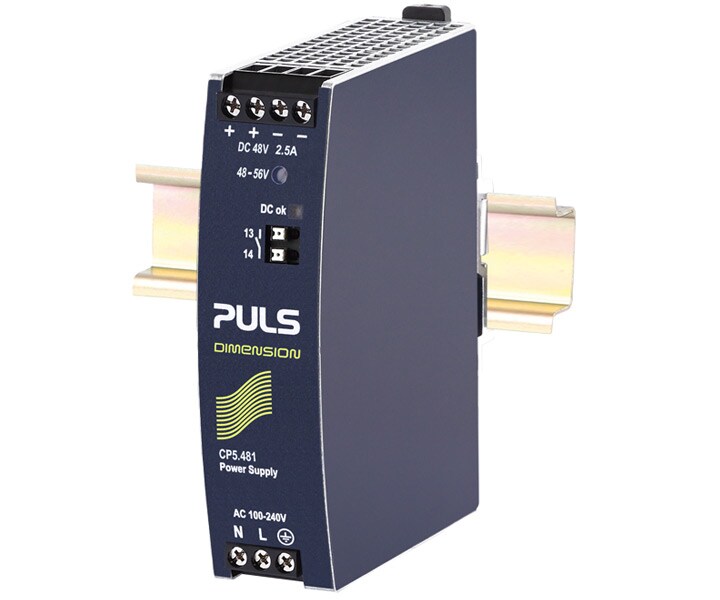

CP5.481 Power Supply
Product ID
CP5.481
Availability
DESCRIPTIONPuls Dimension CP-Series Reduced Width Single Phase Power Supply, 120W, 48-56VDC/2.5A Output, 100-240VAC & 100-150VDC Input, DIN-Rail Mount Metal Housing, -25° to +70°C, 20% Current Reserves, Class 1, Div. 2 Rated.
The Dimension CP-Series are cost optimized power supplies
without compromising quality, reliability and performance. The
CP-Series is part of the DIMENSION power supply family.
While the CP5.481 covers an additional DC-input range up to
150Vdc.
The most outstanding features of these units are the small size,
the high efficiency, the electronic inrush current limitation,
active PFC and the wide operational temperature range. The
devices have a power reserve of 20% included, which may even
be used continuously at temperatures up to +45°C. Additionally,
they can deliver 3 times the nominal output current for 12ms
which helps to trip fuses on faulty output branches.
High immunity to transients and power surges as well as low
electromagnetic emission, a DC-OK signal contact for remote
monitoring, and a large international approval package for a
variety of applications makes this unit suitable for nearly every
situation.
