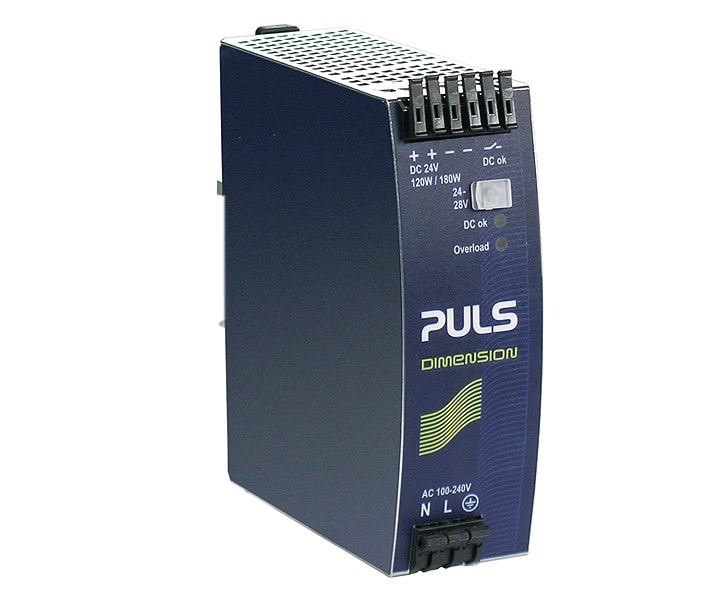

QS5.241 Power Supply
Product ID
QS5.241
Availability
DESCRIPTIONPuls Dimension Q-Series, Single Phase Metal Housing Power Supply with Spring Clamp Terminals, 120W, 24-28VDC/5.0A,120-240VAC Input, DIN Rail Mount Metal Housing, 50% Current Reserves, Class 1 Div. 2.
Suitable when you need state-of the art technology and flexibility for demanding tasks. With outstanding efficiency, 50% Bonus Power and many additional features this series is the, "Best in Class".
Features & Benefits
-
100-240V Wide-range input, active PFC
-
Efficiency up to 92,7%, SEMI-F47-200 approved
-
Negligibly low input inrush current
-
50% Power reserves available up to 4s
-
Full output power between -25 and +60°C
-
Spring-clamp terminals
