IMC-21GA Series Media Converters

Product ID
IMC-21GA Series

Availability

DESCRIPTION

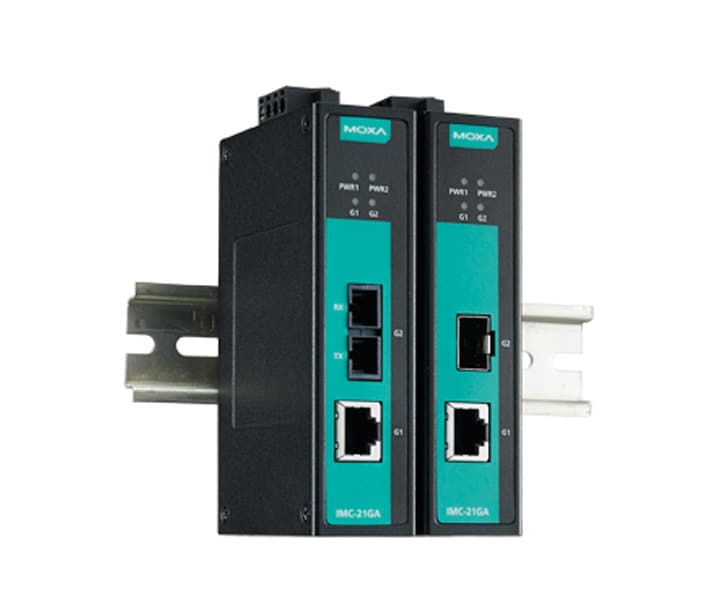

Moxa IMC-21GA Series Industrial Gigabit Copper-to-Fiber Ethernet Media Converters. (Please Specify Model Number.)

Industrial Gigabit Ethernet-to-fiber media converters
The IMC-21GA industrial Gigabit media converters are designed to provide reliable and stable 10/100/1000BaseT(X) to 1000Base-SX/LX (SC) or 10/100/1000BaseT(X) to 100Base-FX or 1000Base-SX/LX (SFP-based) media conversion. The IMC-21GA supports IEEE 802.3az (Energy Efficient Ethernet) and 10K jumbo frames, allowing them to save power and enhance transmission performance. The converters come with a relay output warning alarm to help prevent damage and loss, and all IMC 21GA models are subjected to a 100% burn-in test, and are available in models that support a standard operating temperature range of 0 to 60 deg. C, and an extended operating temperature range of -40 to 75 deg. C.

Features & Benefits

• Supports 1000Base-SX/LX with SC connector, or 100Base-FX or 1000Base-SX/LX with SFP slot
• Link Fault Pass-through (LFP)
• 10K jumbo frame
• Redundant power input
• Supports Energy Efficient Ethernet (IEEE 802.3az)
• -10 to 60 deg. C standard operating temperature range
• -40 to 75 deg. C operating temperature range (T models)
