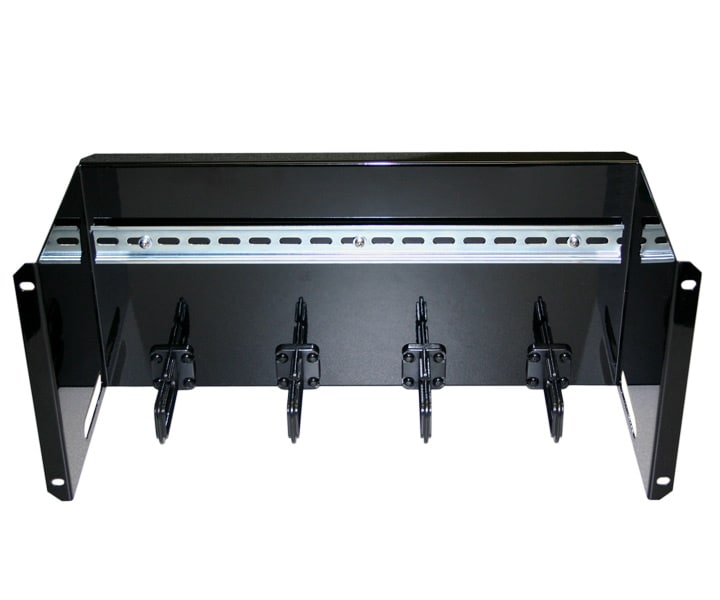

BRKT-19DR-5U-CM Rackmount DIN-Rail Adapter
DINSpace 19-inch Rackmount DIN-Rail Adapter with cable management, 5U.
SNAP 19" rackmount DIN-Rail adapter brackets allow you to mount standard 35mm DIN-Rail devices within your 19" rack or cabinet. Constructed of heavy-duty powder-coated 16-gauge steel, the adapter brackets each support up to 50 pounds of weight. Available in two configurations, the 5U version features a built-in cable management system to help keep your cables organized, while the slender 4U design allows you to optimize your cabinet storage capacity.
- One-piece construction with no assembly required
- Keeps cabinet tidy with optional cable management
- Rugged steel construction with lifetime warranty
- Supports up to 50lbs of DIN-Rail equipment
- Ambient Conditions
- Operating temperature: -40 deg. C - 80 deg. C
- Storage/transport temperature: -40 deg. C - 80 deg. C
- Rack Dimensions
- BRKT-19DR-5U-CM: (H x D x W) 8.65" x 6.75" x 19"
- Mounting: 19" rackmount via four mounting holes
- Weight: 5lbs.
- Protection class: IP20
- Materials of Construction
- Body: 16-gauge powder-coat painted steel
- DIN-Rail: Steel
- Optional Cable Management: Thermoplastic
- Manufacturer's lifetime warranty on materials and workmanship
- Scope of Delivery
- BRKT-19DR-5U-CM: Rackmount adapter, 4ea. pre-mounted cable management guides
