CCH-CS24-A9-P00RE Pigtailed Splice Cassette

Product ID
CCH-CS24-A9-P00RE

Availability

DESCRIPTION

Corning CCH Pigtailed Splice Cassette, 24 Fiber, (12) x LC UPC Duplex, Single-mode (OS2), single-fiber splicing

Closet Connector Housing (CCH) pigtailed splice cassettes enable faster field splicing and easy modular management of connectorization within the housing. They are preloaded and prerouted for quick fusion splicing of either individual or ribbon fiber pigtails, using the same space-saving platform as the standard CCH splice cassette.

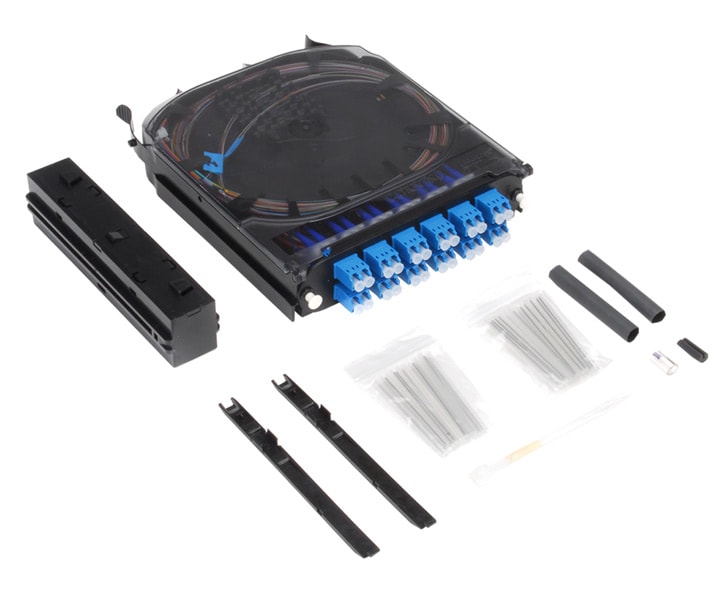

The pre-routed pigtailed cassettes reduce field labor by streamlining features and components to allow for efficiencies in the field. They are prepped with a 2-m pigtail assembly with all pre-existing CCH panel connector options. The pigtailed cassettes have colored 250 μm for ease of splicing. They also enable strain relief to be pre-applied to the assemblies from the manufacturing facility. With the pigtailed cassette, individual splice tray or separate splice housings are eliminated, allowing splicing to be done away from the rack housing in more convenient workspaces. The modular design makes it easy to access the fiber in an individual cassette without disturbing the other fibers in the housing. Each cassette is shipped with the pigtailed CCH adapter panel of the customer’s choice, one rail for use with CCH-01U/2U/3U housings, and two rails used with CCH-04U housings. Grommets and cable ties for additional strain relief and protective braided tubing for incoming cable are also included. Splicing cassettes ship with the appropriate quantity and type of heat-shrink splice protectors.

Features and Benefits

• Manage cable slack for a CCH panel in a modular footprint
  Fast, easy and reliable initial routing, and quick, simple reaccess for moves, adds and changes (MACs)
• Includes everything needed to convert a CCH housing for modular routing and/or splicing
  Easy ordering and field installation
• Modular splice capability
  Manage all splices inside the housing
• Colored 250 μm at splice point
  Easy to identify and prep colored 250 μm for fast and easy splicing
• Pre-prepped splice cassette
  Saves time in the field with a ready to splice product
• Broad operating temperature range (-40 deg. C to +65 deg. C)
  Utility and flexibility
