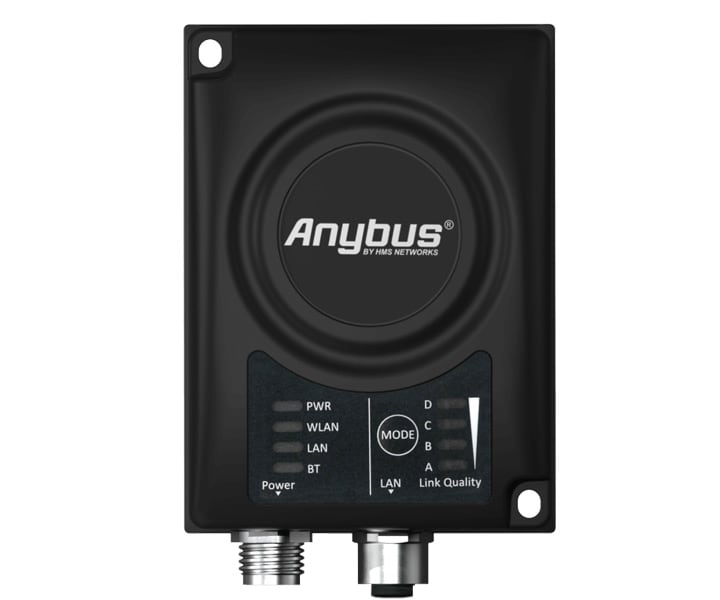

AWB3003 Access Point/Client
AWB3003 Access Point/Client
Product ID AWB3003
Availability
DESCRIPTIONHMS Anybus Wireless Bridge II Ethernet Access Point/Client, 2.4 GHz, 2.4GHz MIMO and 5 GHz Internal Antennas, Range Up To 400 Meters, 1 x M12 for Ethernet (4-pin, D-coded), 1 x M12 for Power (5-pin, A-coded), RP-SMA antenna Connector for External Antenna, Surface Or DIN-Rail Mount (DIN-Rail Kit Sold Separately), 9-30 VDC, -30 to +65 deg. C.
Anybus Wireless Bridge II - Ethernet
Anybus® Wireless Bridge enables you create an industrial wireless connection in an industrial Ethernet network. This second generation of the proven and trusted Wireless Bridge can communicate via both Bluetooth and Wireless LAN and is ideal for communication through hazardous areas or hard-to-reach locations where cables are not desirable. It provides an effective wireless range of up to 400 meters.
BRIDGING TCP/IP ETHERNET The Wireless Bridge makes it possible to operate leading TCP/IP based industrial Ethernet networks, such as BACnet/IP, PROFINET, EtherNet/IP and Modbus TCP, over Bluetooth and Wireless LAN 2.4 / 5 GHz.
POINT-TO-POINT OR MULTIPOINT Point-to-point or multipoint Anybus Wireless Bridge is often used as an Ethernet cable replacement (point-to-point communication). But it can also be used as an access point for up to seven Wireless LAN/Bluetooth clients.
Features & Benefits
- Use with point-to-point wireless Industrial Ethernet installations through hazardous or hard-to-reach locations
- Use as an Access Point for up to seven clients
- Suitable for AGV’s (Automatic Guided Vehicle)
- Fast Roaming (IEEE 802.11r), High link speed (IEEE 802.11n), Robustness (three internal antennas, including MIMO)
- Eliminates the need for expensive or maintenance-heavy cabling
- Bridges TCP/IP Ethernet and protocols such as: BACnet/IP, EtherNet/IP, Modbus-TCP and PROFINET
- Max range of up to 400 meters
- Full compatibility with Anybus Wireless Bolt - a wireless product for machine mounting
- Easy setup via push button or web interface
- Advanced configuration with AT commands
- Compatible with PROFIsafe requirements
- Rugged IP65 rated industrial design
- Security features for a secure industrial operation
- Three built in antennas for higher performance and better robustness
- Operation with Wirelesss LAN, Bluetooth classic and Bluetooth Low Energy
