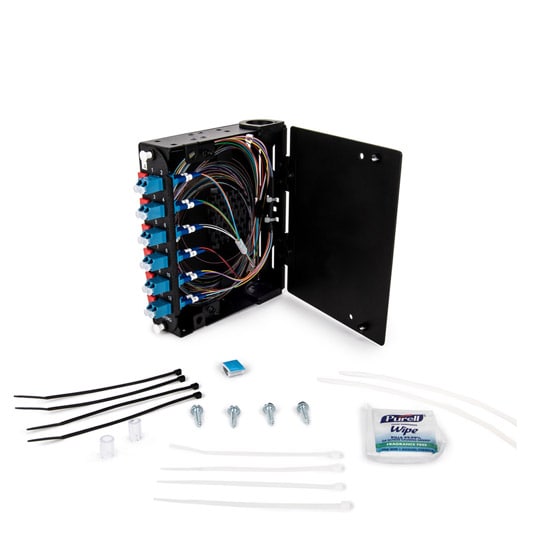

SPH-CS12-A9-P00RE Patch Panel

Product ID
SPH-CS12-A9-P00RE

Availability

DESCRIPTION

Corning Single-Panel Housing (SPH) Pigtailed 12 Fiber, LC duplex, Single-mode (OS2), single fiber, 250 µm.

Corning's single-panel housing is a cost-effective option for storage, protection and termination of optical fiber cables in applications with minimal mounting space. The housing accepts standard LANscape® solution CCH connector panels. The pigtailed SPH-01P is preloaded and pre-routed for quick fusion splicing of individual fiber pigtails using the same space-saving platform as the standard SPH-01P.

The pre-routed SPH-01P reduces field labor by streamlining the features and components of the SPH-01P to allow for efficiencies in the field. They are prepped with a 2 meter pigtail assembly. The pigtailed cassettes have 900 µm at the connector panel for added durability and colored 250 µm for ease of splicing as well as having strain relief pre-applied to the assemblies from the manufacturing facility.

With the pigtailed SPH-01P, the field will also enjoy the elimination of having to order a pigtailed panel and fusion splice heat shrinks separately.

This compact unit is optimized for use in locations such as Box-in-a-Box applications, building entrances, terminals, wiring closets, open office and other areas where space is a premium. The SPH-01P housings have a stacking feature to allow up to three independent SPH-01P housings to be stacked and function as one wall -mount unit allowing capacity expansion without consuming additional wall space.
