OCO12NX Fiber Patch Panel
OCO12NX Fiber Patch Panel
Product ID
OCO12NX
Availability

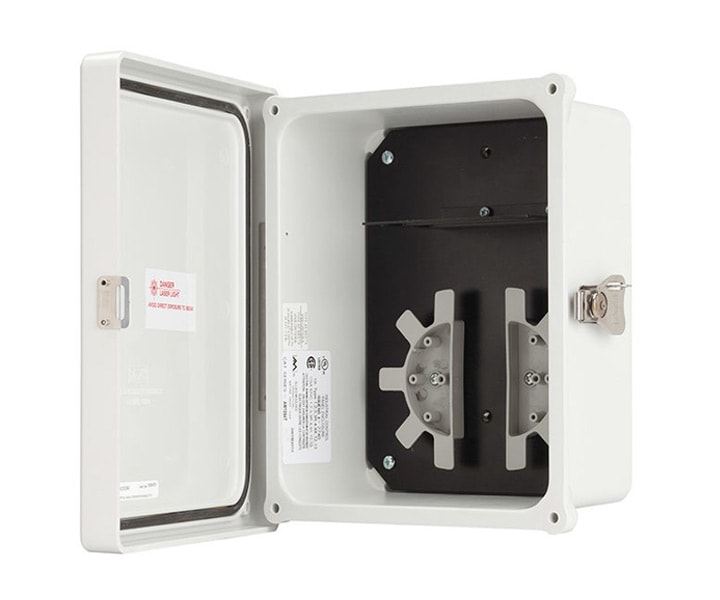

DESCRIPTIONOptical Cable Corporation Fiberglass NEMA 4X Fiber Optic Enclosure (10 x 8 x 4), Accepts 2 Adapter Plates. (Adapter Plates Sold Separately). For indoor or outdoor applications where protection of components from dirt, dust, oil, or water are mandatory, OCC offers the new NEMA 4X Fiber Optic Enclosures. These enclosures are designed to protect fiber optic networking components against environments where corrosive materials, caustic cleaners, and hazardous materials are used. Available in four sizes, the OCC NEMA 4X Enclosures are indoor/outdoor rated cabinets for patching and/or splicing 12 to 96 fiber ports. Constructed of molded fiberglass-reinforced polyester material, these enclosures are well suited for high and low temperature environments as well. Features - Adheres to the rigorous NEMA 4X standard for indoor or outdoor use, including extreme environments
- Protects against windblown dust, rain, sleet, snow, splashing water, and hose-directed water
- Corrosion-resistant
- Constructed of strong molded fiberglass-reinforced polyester material with matching flat cover
- Gasket made of closed cell neoprene cord encased in a continuous channel
- Continuous stainless steel hinge
- Splice only and patch/splice boxes include splice block or splice tray(s)
- Accepts any standard OCC fiber adapter plate
- Includes tie wraps and Kurl Locks for cable management and security
- Pole mounting options are available with a quick assembly and release feature
- Temperature range -40°F to 266°F
