ioThinx 4510 Series Remote I/O

Product ID
ioThinx 4510 Series Adapters

Availability

DESCRIPTION

Moxa ioThinx 4510 Advanced Modular Remote I/O Adapter, Supports Up to 32 I/O Expansion Modules (Sold Separately), Includes Built-In Modbus RTU to Modbus TCP, SNMP, MQTT, and RESTful API Protocol Gateway, 12-48 VDC Powered, C1D2 & ATEX Rated.

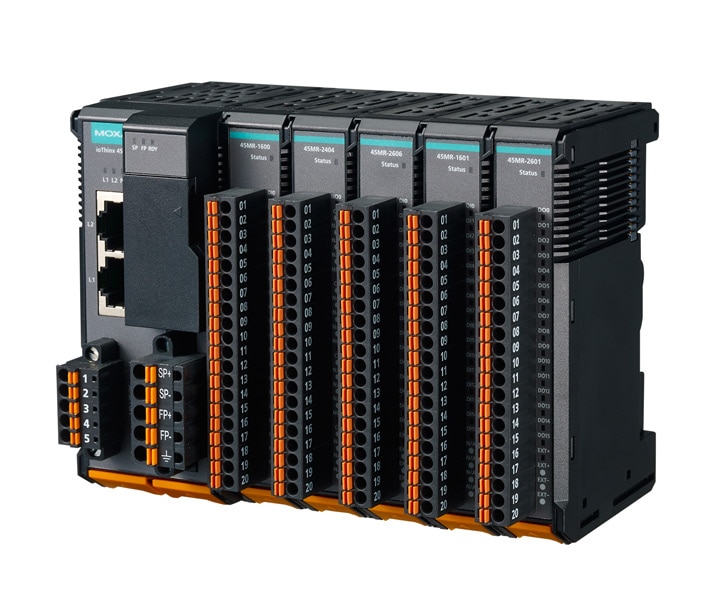

ioThinx 4510 Series Advanced Modular Remote I/O Adapter

The ioThinx 4510 Series is an advanced modular remote I/O product with a unique hardware and software design, making it an ideal solution for a variety of industrial data acquisition applications. The ioThinx 4510 Series has a unique mechanical design that reduces the amount of time required for installation and removal, simplifying deployment and maintenance. In addition, the ioThinx 4510 Series supports Modbus RTU Master protocol for retrieving field site data from serial meters and also supports OT/IT protocol conversion.

Features & Benefits

• Easy tool-free installation and removal
• Easy web configuration and reconfiguration
• Built-in Modbus RTU gateway function
• Supports Modbus/SNMP/RESTful API/MQTT
• Supports up to 32 I/O modules
• Base unit can provide up to 1000mA power. Consult current draw specs for each I/O module. If total current draw exceeds 1000mA, a 45MR-7210 power supply module is required.

• -40 to 75 deg. C wide operating temperature model (T) available
