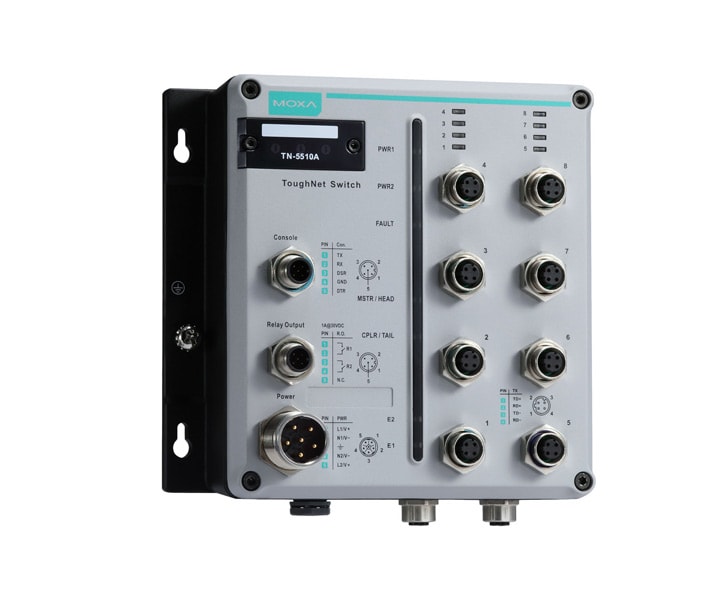

TN-5510A/5518A PoE Series Switches

Product ID
TN-5510A/5518A PoE Series

Availability

DESCRIPTION

Moxa TN-5510A/TN-5518A PoE series EN50155 managed machine mount switches, bypass relay function, power input (24 - 110 VDC), -40 to 75 deg. C with conformal coating, port type and quantity vary by model. (Please Specify Model Number.)

The ToughNet TN-5500A series M12 managed Ethernet switches are designed for railway applications, including rolling stock and wayside installations. The switches use M12 and other circular connectors to ensure tight, robust connections, and guarantee reliable operation in industrial environments where vibration and shock are commonplace. The TN-5500A series Ethernet switches have 8 or 16 Fast Ethernet M12 ports with 8 IEEE 802.3at/af compliant PoE (Power-over-Ethernet) ports and 2 ports on the down side to provide the Gigabit Ethernet interface with an optional bypass relay function. The PoE switches are classified as power source equipment (PSE); they provide up to 30 watts of power per port, and can be used to power IEEE 802.3at/af compliant powered devices (PDs), such as IP cameras, wireless access points, and IP phones. The 24 to 110 VDC wide power input range and isolated power inputs not only allow you to use the same type of power source at different sites around the globe, but also increase the reliability of your communications system. Furthermore, the -40 to 75°C operating temperature and IP54-rated waterproof enclosure allow deployment in harsh environments. The TN-5500A series Ethernet switches are compliant with essential sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the switches suitable for a variety of industrial applications.

Features & Benefits

• 2 Gigabit ports with optional bypass relay function
• Isolated power with wide 24 to 110 VDC power supply range
• Essential compliance with EN 50155
• -40 to 75°C operating temperature range
• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
• 8 IEEE 802.3at/af compliant combo PoE and Ethernet ports
• Provides up to 30 watts at 48 VDC per PoE port
