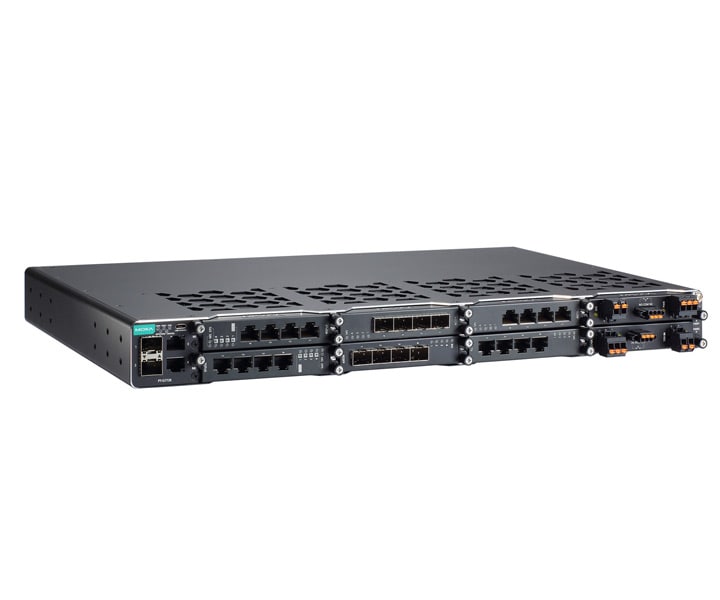

PT-G7728/G7828 Series Ethernet Switches

Product ID
PT-G7728/G7828 Series

Availability

DESCRIPTION

Moxa 28-Port Full Gigabit Managed Ethernet Switch, Includes 2 x 10/100/1000Base-T(X) RJ45 & 2 x FE/GE SFP Slots, 6 x Media Module Slots (LM-7000H Series Modules Sold Separately), 2 x Power Module Slots (PWR-LV/HV-P48 Series Power Supply & SFP Modules Sold Separately, 19" Rackmount, -40 to 85 deg. C, IEC 61850-3 / EN 50121-4 Rated. (Please Specify Model.)

The PT-G7728 (Layer 2) and PT-G7828 (Layer 3) modular switches provide up to 28 Gigabit ports, including 4 fixed ports, 6 interface module slots, and 2 power module slots to ensure sufficient flexibility for a variety of applications. The PT-G7728 and PT-G7828 Series are designed to meet evolving network requirements, including a hot-swappable module design that enables you to change or add devices without shutting down your device. The multiple Ethernet modules (RJ45, SFP, and PoE) and power units (24/48 VDC, 110/220 VAC/VDC) provide even greater flexibility as well as suitability for different operating conditions. The switches support a full Gigabit platform that provides enough bandwidth to set up an Ethernet backbone. Certifications include IEC 61850 Edition 2 Class 2 to ensure high availability and wide usage.

Features & Benefits

• IEC 61850-3 Edition 2 Class 2 compliant
• Hot-swappable interface and power modules for continuous operation
• Built-in MMS server based on IEC 61850-90-4 switch data modeling for power SCADA
• IEEE 1588 hardware time stamp supported
• V-ON™ ensures millisecond-level multicast data and video network recovery
