DESCRIPTION

ESTeem AA206Eg-Dual 2.4 GHz Dual Polarity MIMO Panel-Mount Antenna, Directional, 19 dBi, 2 x TNC-mrp Antenna Connections w/ 18" Pigtails.

Applications: Fixed base pole mounting
Antenna Type: Directional, Linear Polarized Panel, DC grounded
Frequency: 2.4-2.5 GHz
Polarization: Linear - Vertical and Horizontal
Impedance: 50 ohms
Gain: 19 dBi nominal
VSWR: <2 typical
Horizontal Beamwidth: 20 degrees @ -3dB
Vertical Beamwidth: 20 degrees @ -3dB
Antenna Material: UV protected PVC
Mounting Hardware: Included mounting bracket for mast to 2.16 in. O.D.
Antenna Connector: (2) TNC male reverse polarity with 18 in. pig-tail and weatherproof boot
Windload: 100km/h (62 miles/hour)
Antenna Envelope: 16.1 in. length by 16.1 in. height by 1.2 in. depth
Operating Temperature: -40 to +80°C
Weight: 4.2 lbs.

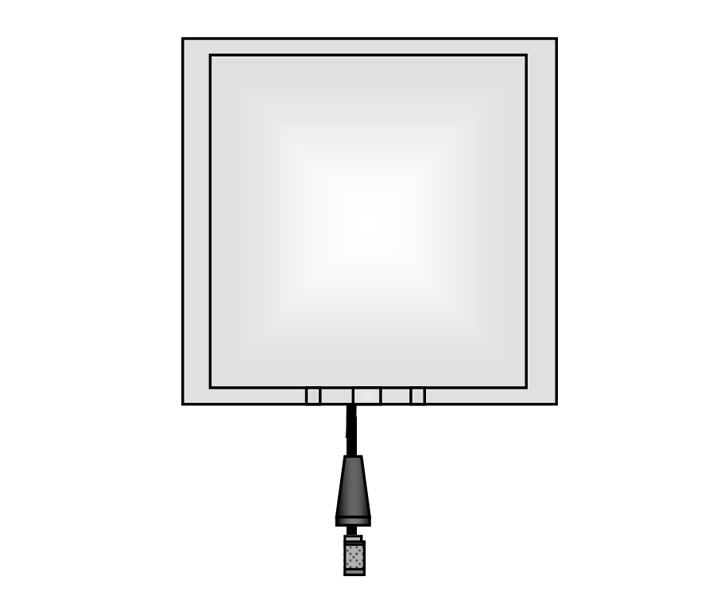

AA206Eg-Dual Directional Antenna (2.4 GHz)
