ANT-3-4G2G1-O= Cellular Antenna

Product ID
ANT-3-4G2G1-O=

Availability

DESCRIPTION

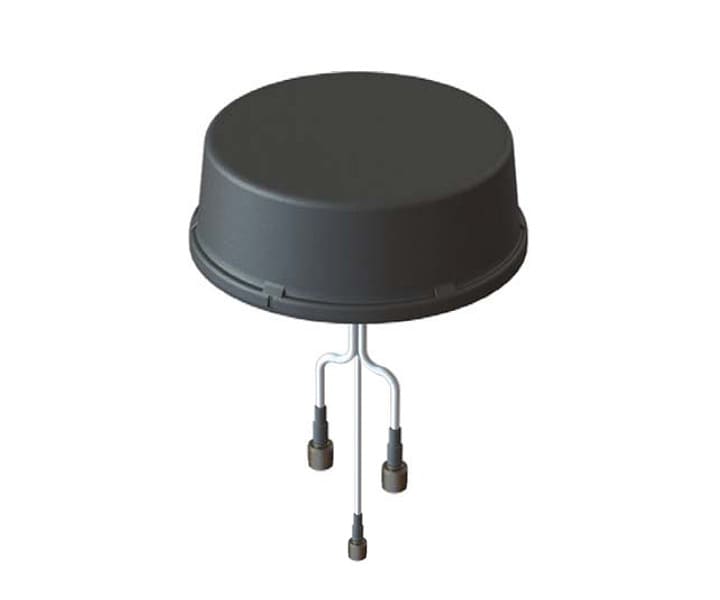

Cisco Transportation Omnidirectional 3-Element antenna for 2G, 3G, 4G Cellular and GPS. 2 TNC-Female Connectors for Cellular, 1 SMA-Female Connector for GPS.

The antenna may require RF extension cables. A shorter 2 foot cable length was selected on LTE WAN to allow you to optimize LTE WAN performance and wireless range. If you require a cable length longer than 2 feet with the antenna, then select RF extension cables of appropriate length and type.

Thicker RF cables result in lower loss, higher RF performance and longer range of wireless network than thinner cables. The trade-off is that thicker cables are more difficult to bend and route.

For optimal performance, the length of thin cables needs to be kept as short as possible. For example, 2 foot and 10 foot lengths at 2700 MHz frequency would have losses of approximately 0.5dB and 2.3dB respectively. In this example at 2700 MHz the area covered by the wireless system with the 10 foot cable is reduced by 34% compared to 2 foot cable. Radius of communication is degraded by 20% in 10 foot vs 2 foot case.
