DESCRIPTION
AdderLink INFINITY ALIF4001T Transmitter, Dual-Monitor DisplayPort 4K, 2 x 1G-10G SFP Slots, 120VAC US Power Adapter Included.

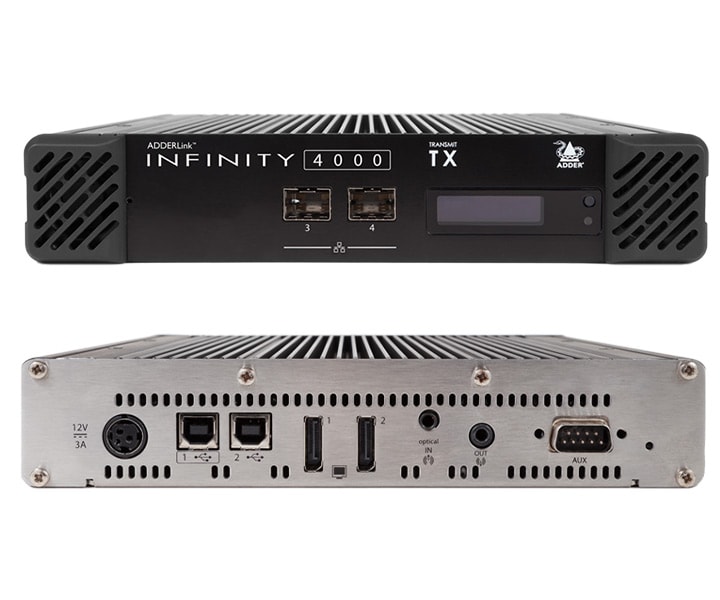

ADDERLink INFINITY 4001 Transmitter
A high performance dual-head IP KVM matrix solution with support for 5K video and multigigabit Ethernet connectivity.
The ADDERLink INFINITY 4000 Series (ALIF4000) is the world€™s first dual-head, 5K high performance IP KVM matrix over a single fiber. Fully compatible with the existing ADDERLink INFINITY (ALIF) range, and supported by the ADDERLink INFINITY Manager (AIM), the ALIF4001 can be used as a point-to-point extender or easily integrated into a wider matrix system.

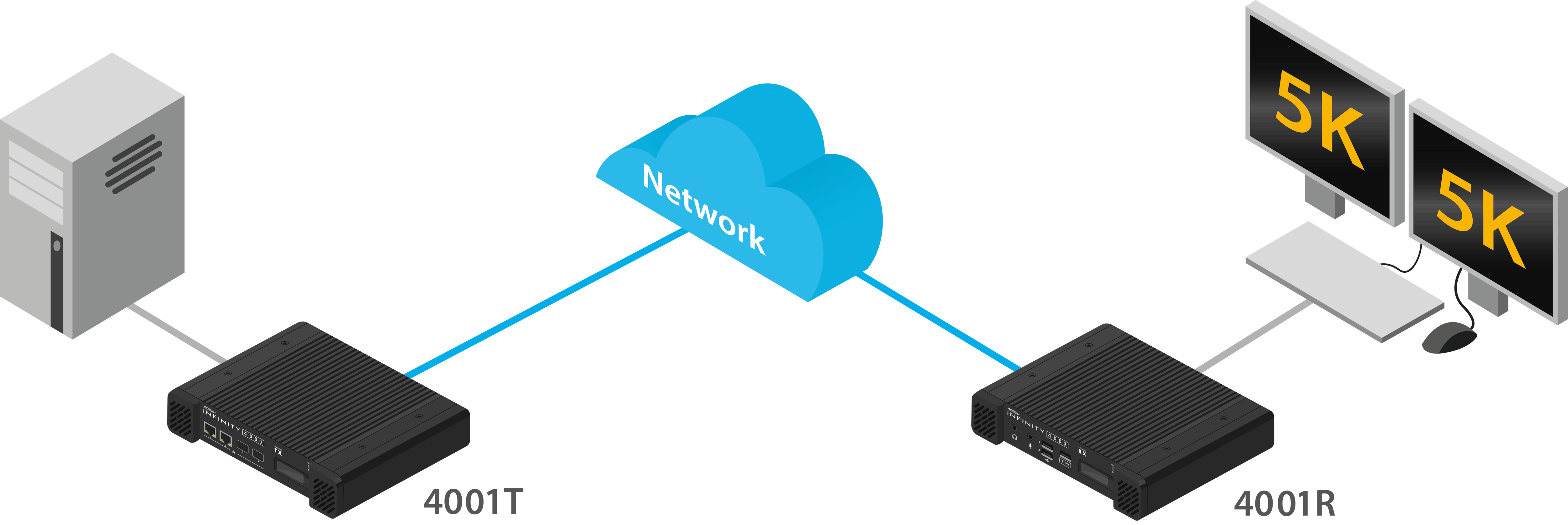

Example Diagram
Features and Benefits
5K Resolutions and High Frame Rate Supported
The ALIF4001 can deliver two 5K video resolutions and ultra-wide video resolutions (5120x1440@60Hz or 5120x2880@30Hz) or higher refresh rates of up to 240Hz (HD@240Hz) over a single IP connection.
Perfect Digital Video, Real-Time Control
Using a spatially-lossless encoding system, with 1:1 pixel mapping, the ALIF4001 provides pixel-perfect and color accurate video with no artifacts. The digital video received is the same as the digital video leaving the remote computer.
10-bit Per Color and HDR10
The ALIF4001 allows greater color depth of 10 bits per color (or 30 bits per pixel) and supports both SDR10 and HDR10.
Multigigabit Ethernet Support
The ALIF4001 supports 1 and 10GbE over fiber via the SFP slots along with Multirate (1/2.5/5/10) GbE. This enables premium video performance over standard CAT6 cable up to 100m.
Flexible and Scalable Extender or Switch
Each ALIF4000 series unit can be configured as a simple extender or self-managed distributed KVM switch. Each receiver can see up to 16 sources and rapidly switch between them.
ADDERLink® INFINITY Matrix
With the addition of the ADDERLink® INFINITY management system (AIM), you can turn multiple point-to-point extenders into a truly scalable digital KVM matrix system that allows any workstation to link with any computer connected to the network.
