DESCRIPTION

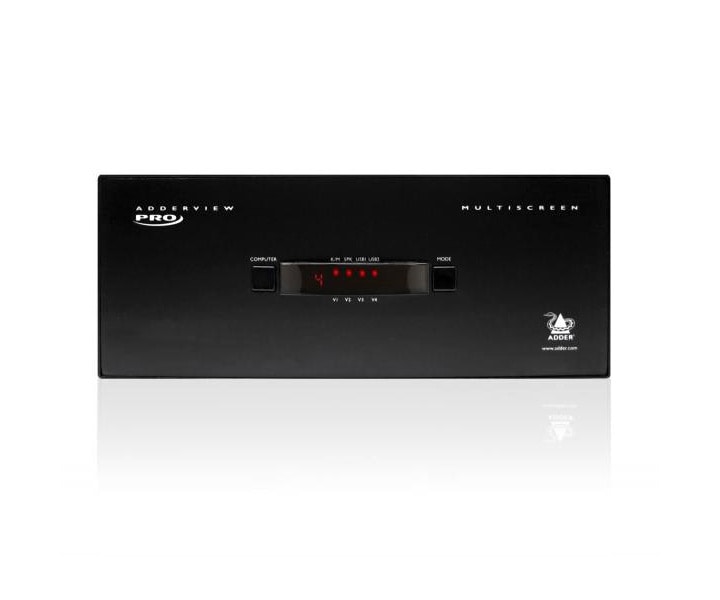

AdderView Pro 4-Port KVM Switch, Quad DVI Monitor, True USB Emulation (Video, Audio & USB Connection Cables Sold Separately).

The AV4PRO-DVI-MS is designed to enable four multihead computers to be controlled from a single high resolution KVM console using either dual link DVI or high definition analogue video links. The switch makes use of ADDER's True Emulation technology which enables USB HID devices to be continuously emulated to each computer. This unique technology enables instantaneous and reliable hotkey switching whilst also supporting the extra keys and features of enhanced keyboards and mice.

Furthermore, the ADDERView includes two independently switchable USB 2.0 channels and an audio channel, giving the user the flexibility to attach selected peripherals to different computers. Models are available supporting single, dual, triple or quad head DVI or VGA computers.

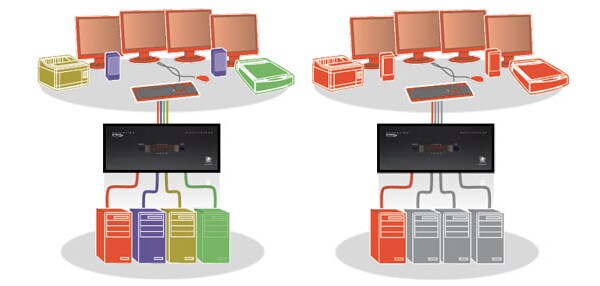

Diagram

Dual link DVI-I with extended profile DDC EDID
The ADDERView PRO Multi-Screen features full dual link DVI video delivering 4 megapixel resolutions per head at 60Hz. Because the ADDERView features DVI-I, you can also use a choice of digital or analogue sources. The extended DDC EDID profile ensures that the switched graphics card is always optimised to work with your screen. The dual link DVI capabilities en(more...)
