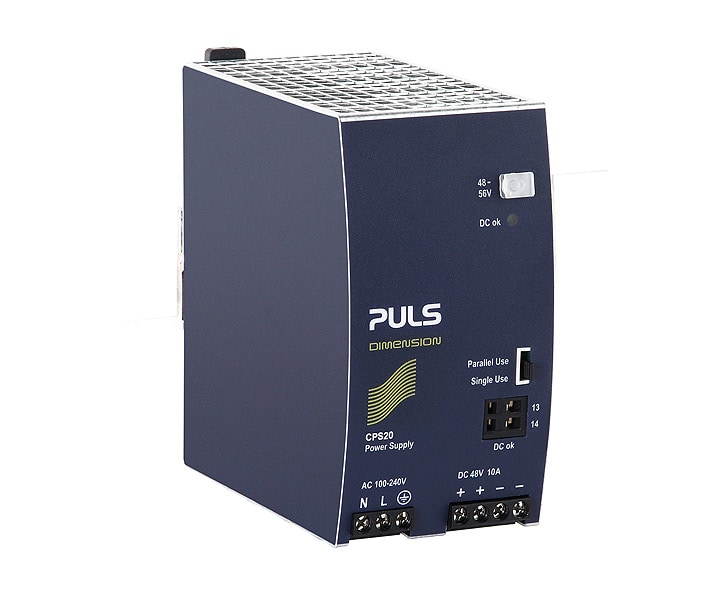

CPS20.481 Power Supply
Product ID CPS20.481
Availability
DESCRIPTIONPuls Dimension C-Series Single Phase Power Supply, 480W, 48-56VDC, 10.0A Output, 100-240VAC Input, DIN-Rail Mount Metal Housing, -25 deg. to +70 deg. C, 20% Current Reserves, Class 1, Div. 2 Rated. The Dimension C-Series are cost optimized power supplies without compromising quality, reliability and performance. The C-Series is part of the DIMENSION power supply family. The most outstanding features of CPS20.481 are the high efficiency, electronic inrush current limitation, active PFC, wide operational temperature range. The C-Series includes all the essential basic functions. The devices have a power reserve of 20% included, which may even be used continuously at temperatures up to +45 deg. C. Additionally, the CPS20.481 can deliver about 4 times the nominal output current for 15ms which helps to trip fuses on faulty output branches. High immunity to transients and power surges as well as low electromagnetic emission, a DC-OK relay contact and a large international approval package for a variety of applications makes this unit suitable for nearly every situation. Features & Benefits - AC 100-240V Wide-range Input
- Width only 65mm
- Efficiency up to 93.9%
- ATEX and IECEx Approved
- Excellent Partial Load Efficiency
- 20% Output Power Reserves
- Safe HiccupPLUS Overload Mode
- Easy Fuse Tripping due to High Overload Current (typ. 45A for 15ms)
- Active Power Factor Correction (PFC)
- Minimal Inrush Current Surge
- Full Power Between -25 deg. C and +60 deg. C
- DC-OK Relay Contact
- Current Sharing Feature for Parallel Use
