IMC-101 Series Media Converters
IMC-101 Series Media Converters
Product ID IMC-101 Series
Availability

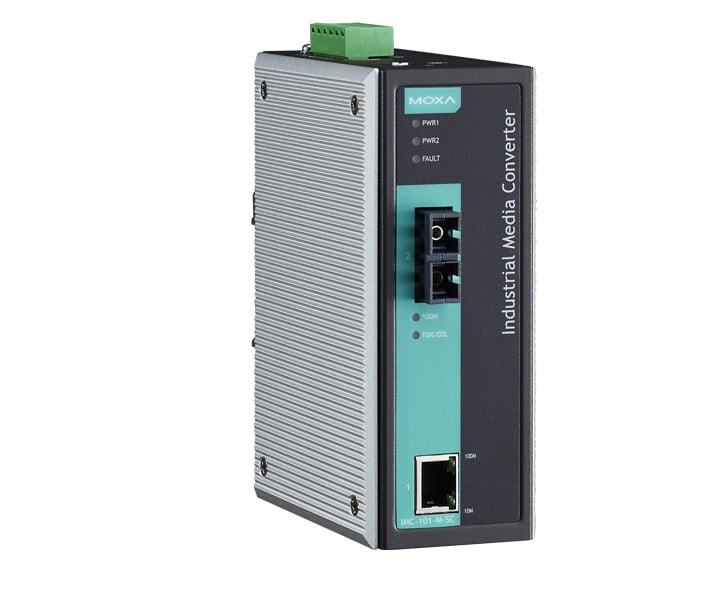

DESCRIPTIONMoxa Industrial Media Converter, 10/100Base-T(X) to 100Base-FX, 24 VDC, DIN-Rail Mount. (Please Specify Model and Ratings.)
The IMC-101 industrial media converters provide industrial grade media conversion between 10/100BaseT(X) and 100BaseFX (SC/ST connectors). The IMC-101's reliable industrial design is excellent for keeping your industrial automation applications running continuously, and each IMC-101 converter comes with a relay output warning alarm to help prevent damage and loss. The IMC-101 media converters are designed for harsh industrial environments, such as in hazardous locations (Class 1, Division 2/Zone 2, DNV, and GL Certification), and comply with FCC, TV, UL, and CE standards. All IMC-101 series are subjected to a 100% burn-in test. Features and Benefits - 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
- Link Fault Pass-Through (LFP) (media converters should work as a pair)
- Power failure, port break alarm by relay output
- Redundant power inputs
- Designed for hazardous locations (Class 1 Div. 2/Zone 2), DNV & GL. (IECEx Models)
- Temperature Variants:
- Standard Temp, 0 to +60 deg. C.
- Extended Temp, -40 to +75 deg. C.
