X-KVM/P-USA KVM Extender

Description

AdderLink X Series X KVM - KVM extension for high density environments and Cat6 installations

Convenient and remote control of a PC or KVM switch over 200m (650 ft) of UTP cable, the X Series X KVM is designed with Cat6 in mind. The X KVM is a sophisticated extender offering flexible control over advanced cable systems.

Featuring auto bandwidth adjustment and skew reporting for today's challenging Cat6 structured cable systems, the X KVM is designed to control a PC or KVM switch remotely over UTP cable. Ideal for use in call centers, digital signage applications, data centers and other high density environments where optimization of rack space is essential, the X KVM is also future proof due to flash upgradeability via the keyboard port.

Features

• High video quality at a resolution of up to 1600 x 1280
• Includes CPU connection cable for easy installation
• Password security prevents unauthorized use
• Flash upgradeable via the keyboard port
• Supports automatic and manual video compensation

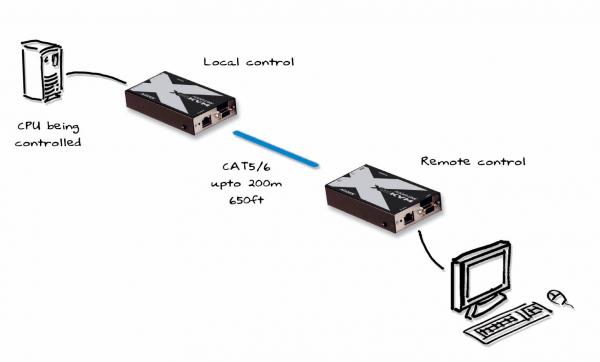

Example Diagram
