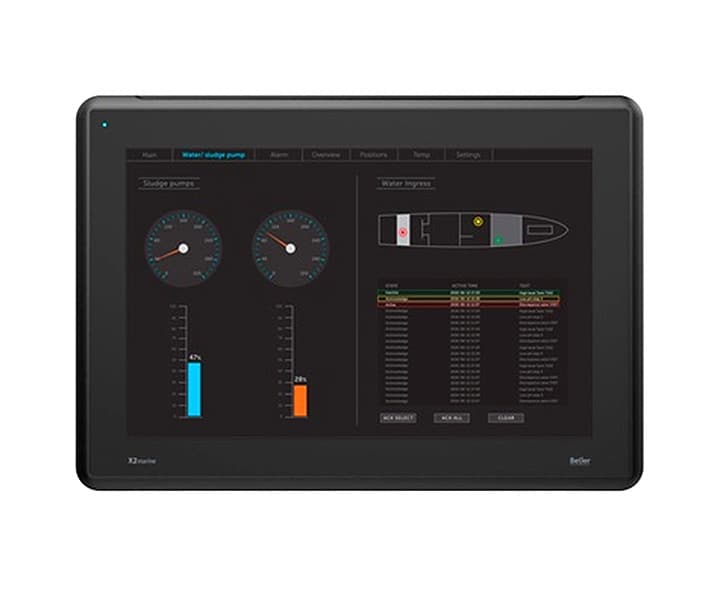

X2 marine Series HMI

Features & Benefits

• Wide screen format X2 panels offer wide screen format, designed to succeed the traditional 4:3 square aspect ratio.
• UL, CE, FCC and KCC certificates The entire X2 range offers a strong standard certification with UL, CE, FCC and KCC certificates.
• iX software "“ why you"™ll love our hardware The iX software gives you smart communication tools. iX combines top-class vector graphics and easyto- use functions that provide reliable operation, and almost limitless connectivity to your other equipment.
• Fast forward engineering with WARP Create integrated HMI, control, drives and data communication solutions with WARP Engineering Studio. WARP automatically configures all hardware, software and communication in your application.
• Custom design or non-branded Profile your brand or go for neutral. X2 panels offer custom designed or non-branded front foils, as alternatives to the standard Beijer Electronics branded versions.
• Powerful ARM Cortex-A9 processor Powerful single, dual or quad core ARM Cortex-A9 processor delivers fast screen changes and program execution in demanding applications.
• Robust aluminum housing with IP65, NEMA 4X/12 and UL Type 4X/12 front. Resistant to direct rain, snow or wash-downs, dirt, grime and dust.
• Wide operating temperature -10 deg. C to +60 deg. C The wide -10 deg. to +60 deg. C operating temperature range satisfies the demands of most industries.
• Marine certifications The X2 panels meet extended classes of marine certifications not normally carried by HMIs, making them suitable for all onboard locations.
• CiX CAN, Profibus and MPI module It"™s easy to interface with controllers using optional CiX CAN, Profibus or MPI modules.
• SD memory card Card holder and USB connection are located behind the lid on the back of the panel for smart memory expansion, project backup and application loading.
• Dimmable backlight Comfortable and safe operation in high and low ambient light. Backlight is continuously dimmable to less than one cd/m2.
• High brightness display Optional 1,000 cd/m2 backlight provides excellent readability in high ambient light levels such as sunlight.
• Add control by CODESYS Choose optional IEC 61131-3 PLC functionality by CODESYS, running on dedicated CPU cores for safe and fast program execution. Just add remote I/Os for a scalable, cost-effective solution.
• Built-in digital outputs X2 marine panels with high brightness option have built-in digital outputs for direct connection of alarms, signal lights, etc.
• Internal isolation conforms to marine standards for both burst and surge immunity.
