CCS-XB Illumination Module

Product ID
CCS-XB

Availability

DESCRIPTION

Adder LED Light Module Kit For Use With AdderView CCS4 Command & Control Switch, Supports Up To 10 x CCS-LED Light Cables (4 Are Included With Unit) (Kit Also Includes (1) VSC46 1 Meter CATx Link Cable)

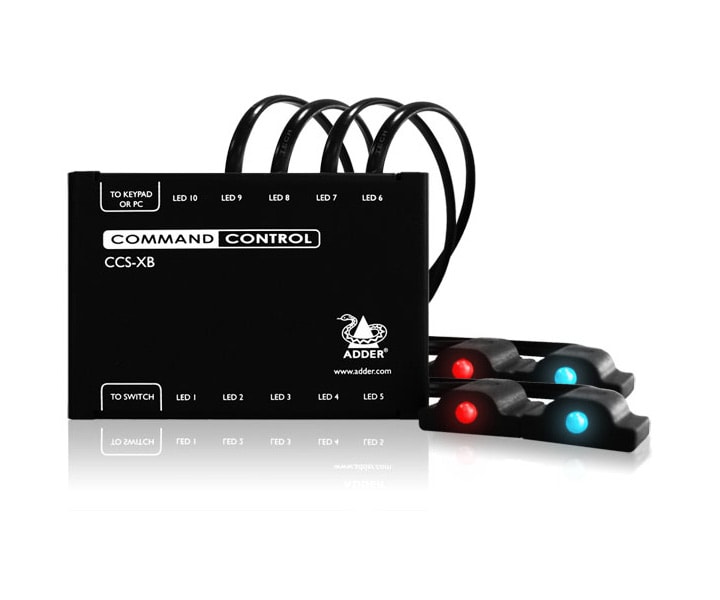

ADDER CCS-XB
LED Light Module designed to indicate active screen focus when used alongside Free-Flow.

The CCS-XB illumination module is an accessory which connects to the CCS4-USB. It gives the users the option to have an LED indicator positioned on each screen to indentify which screen you are currently controlling. The colour and intensity can be controlled for each screen. A maximum of 10 illumination indicators can be supported.

Features

Add-on module for use with CCS4USB and Free-Flow. This module controls a set of LED lights which mount onto your screens. The LED's are fully configurable allowing the user to assign a specified color and intensity via the setup application. These units provide loop through support for additional accessories such as the RC4 or RC8 remote control modules for greater flexibility. Each LED module is pre-wired with 3 metres of cable allowing the user to route the module discreatly to the screen. The flexible cable used is of oval profile making it easier to tuck into channeling, wall gaps or any similar room features.

Each LED is housed in a sturdy molded enclosure and provided with an adhesive pad allowing the module to be fixed onto a screen bezel or other surface as required.

The CCS-XB is interface powered making installation very simple.

Each CCS-XB ships with 4 LED modules. Additional modules can be ordered (to a maximum of 10 per unit) using order code: CCS-LED
