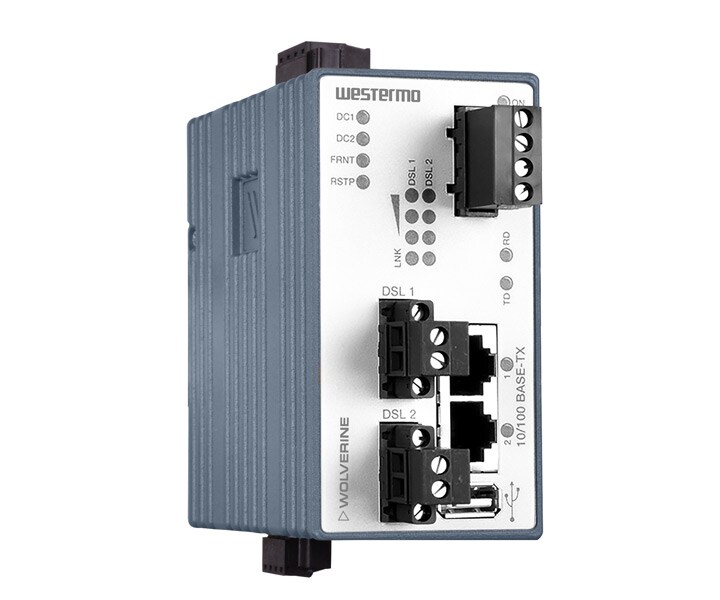

DDW-242-485 Ethernet Extender

Product ID
DDW-242-485

Availability

DESCRIPTION

Westermo SHDSL 2-Port Layer 3 Advanced Industrial Ethernet Extender For Point-To-Point Or Point-To-Multipoint Applications, Up to 15.3 MB (Or 30.4 Mb With Bonded Pair), With Integrated 2-Port Ethernet Switch and RS-422/485 Serial Port, DIN-Rail Mount, 19-60 VDC, -40 to +70 deg C. (Article #3642-0330).

Westermo’s Ethernet extender technology based on SHDSL makes it possible to reuse many types of pre-existing copper cables, which can lead to considerable financial savings when installing new or updating existing systems. The SHDSL technology enables long distance connections of Ethernet interface (up to 15 km/9.3 mi) at data rates up to 15.3 Mbit/s on a single twisted pair cable. By using two pairs “bonded”, this rate can be doubled up to 30.6 Mbit/s. The built-in switch allows two Ethernet devices to be attached. The DDW-x42 series also supports one serial RS-232 or RS-485 interface.

Only industrial-grade components are used which ensures a long service life and an MTBF (Mean Time Between Failures) of up to 437,000 hours according to the though military standard MIL-HDBK-217. A wide operating temperature range up to -40 to +74 deg. C (-40 to +165 deg. F) is supported with no moving parts or ventilation holes in the case.

The DDW-x42 series is often used in applications on railways, roads or with utilities where failure could result in significant costs. To ensure reliable operation, the DDW-x42 series has been tested both by Westermo and external test labs to meet the most recognized standards related to EMC, isolation, vibration and shock. All to the highest levels suitable for the though applications the product is designed for.

The DDW-x42 series is powered by Westermo Operating System, WeOS. WeOS delivers unique security functionality as well as allowing the products to form part of a resilient multimedia ring network using the Westermo FRNT protocol or industry standard STP/RSTP. In addition, it contains amazing serial connectivity capability – from being able to simulate an old AT modem, convert Modbus RTU to TCP or encapsulate serial data into an IP packets. The DDW-x42 series is incredibly flexible and easy to use. A basic point-to-point or multidrop network can be created without the need for any kind of configuration.

Features and Benefits

• Compact Industrial Ethernet Extender
  • Point-to-point, ring or multidrop applications
  • Advanced WeOS functionality
  • Low power consumption
• Designed for use in industrial applications
  • Redundant 12/24-48 VDC dual input power supply
  • Highly configurable I/O contact
  • Robust metal DIN rail housing
• Robust for long service life
  • Market-leading MTBF (Mean Time Between Failures)
  • -40 to +74 deg. C without moving parts or ventilation holes
  • Industrial, marine and trackside type tested
• Unique future proof industrial networking solutions
  • Resilience and high availability solutions
  • Serial legacy support
  • Designed based on IEC 62443 demands
