Rittal Carbon Steel Wallmount Enclosures

Product ID
Rittal Carbon Steel Wallmount Enclosures

Availability

DESCRIPTION

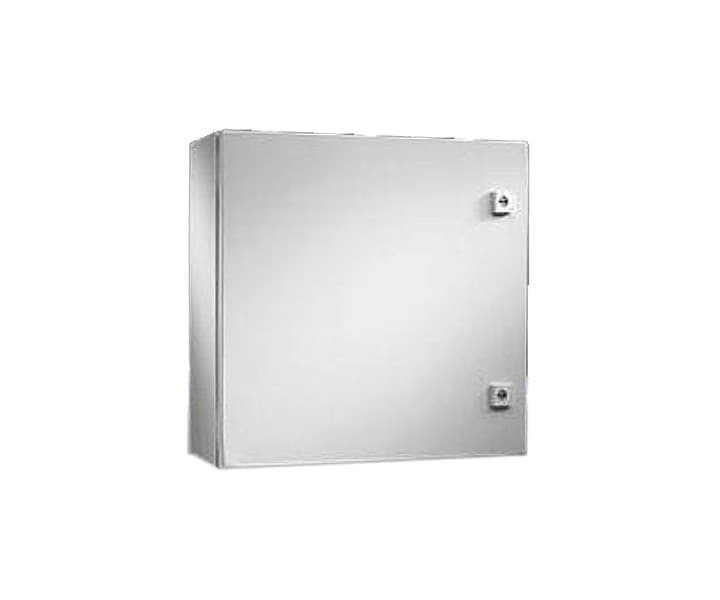

Rittal Carbon Steel Wallmount Enclosure, NEMA 4, RAL 7035 Light Gray, Includes Back Panel. (Please Specify Size.)

Please Note: Enclosures may require being shipped on a pallet, which may incur additional shipping charges than those calculated using the shipping methods offered within the cart at check-out.  INS will contact the customer for authorization prior to shipment in these cases.

Rittal WM enclosures set the standard for maximum use of space and ease of installation. WM compact enclosures can be used for virtually any application. NEMA protection ratings are ensured through a secure locking system, foamed-in-place gasket and knife-edge perimeter. Features include a body constructed of cold rolled steel, steel doors and zinc-plated mounting panels. WM enclosures are readily available in all of the most popular sizes, protection categories and configurations – including universal disconnect cutout.

Features & Benefits

• One-piece welded cold-rolled steel body
• Carbon steel
• Zinc-plated mounting panel standard
• Available with universal disconnect cutout
• Foamed-in-place gasket
• Quick-release hidden 130° door hinges
• Electrophoresis dip-coat primer with powder-coat surface
• Flange-trough collar opening channels liquids and dust away from enclosure gasket and enclosure interior
• Left-hand hinged door (the single door configuration is reversible)
• Wall-mounting holes
• Single door enclosures less than 20” in height have one ¼ turn latch with screwdriver insert
• Single door enclosures 20 - 40” in height have two ¼-turn latches with screwdriver inserts
• Single door enclosures greater than or equal to 42” in height have a 3-point latching L-handle
• Double door and disconnect enclosures have a 2- or 3-point latching L-handle
