AWB2031 Wireless Bolt RJ45 PoE (White)

Product ID
AWB2031

Availability

DESCRIPTION

HMS Anybus Wireless Bolt WLAN/Bluetooth Access Point/Client, 2.4 GHz and 5 GHz, Range Up To 100 Meters, 10/100Base-TX RJ45 Connection, Enclosure or Machine Mount, IP67 Rated & C1D2 Rated, 19-36 VDC Powered or PoE, White "Sunbolt" Housing, -40 to +65 deg C.

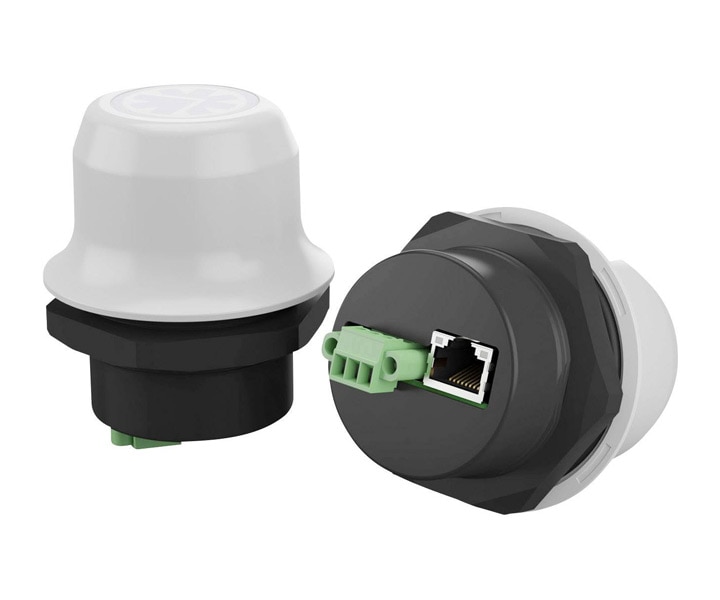

Anybus Wireless Bolt - Ethernet RJ45 PoE
Anybus Wireless Bolt enables you to connect industrial machines and devices to a wireless network. It is attached onto a cabinet or a machine to enable wireless access over Bluetooth®, Bluetooth Low Energy® or Wireless LAN (WiFi).

On the wired side, the Anybus Wireless Bolt communicates over Industrial Ethernet, supporting protocols such as BACnet/IP, PROFINET, EtherNet/IP, Modbus TCP as well as all TCP and UDP based protocols.

CONFIGURE MACHINES WIRELESSLY
Anybus Wireless Bolt gives you direct access to configure or troubleshoot your machinery. With a range of 100 meters you can access the internal web pages via a laptop, tablet or smartphone. BYOD (Bring Your Own Device) means that you no longer need an expensive HMI. A machine operator or technician does not need to be physically located at the machine to gain access.

AN ALL-IN-ONE SOLUTION
With Anybus Wireless Bolt you get an All-in-one package featuring, connector, communication processor and integrated antenna in the same unit, with an exterior IP67 protection class.

Features & Benefits

• Configure or troubleshoot industrial machinery over a wireless network
• Increase flexibility and mobility. Eliminate expensive fixed HMI€™s by using a laptop, tablet or smartphone
• Connect to moving field equipment such as AGV€™s (Automated Guided Veicles)
• Fast Roaming (IEEE 802.11r), High link speed (IEEE 802.11n)
• Full compatibility with Anybus Wireless Bridge €” a wireless product for cable replacement
• Connect to a Cloud Service of your choice or get live data and integrate it into a SCADA system
• Supports Ethernet and protocols such as: BACnet/IP, EtherNet/IP, Modbus-TCP, PROFINET, TCP/UDP
• Uses Dual-band Wireless LAN 2.4/5 GHz to connect easier and identify interference-free channels
• Simultaneous operation of Bluetooth and Wireless LAN allowing for bridging between the two networks
• Security features for a secure industrial operation
• Dual power supply, PoE (Power over Ethernet) and/or 3-pole 19-36VDC connector
• Available with white top Sunbolt enabling 30% higher surrounding temperature compared to black in direct sunlight.
• Operation with Wirelesss LAN, Bluetooth classic and Bluetooth Low Energy.
