AA20Ea Antenna
Product ID AA20Ea
Availability

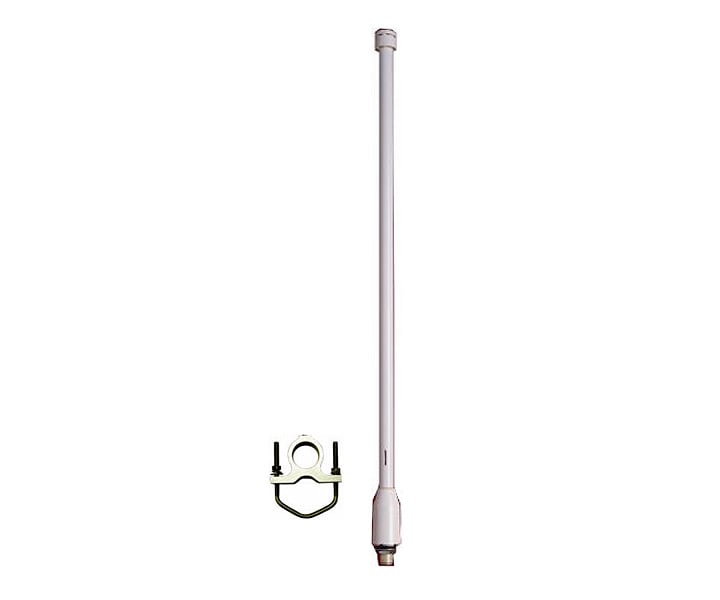

DESCRIPTIONESTeem Antenna, 5.8 GHz, Omni-Directional, 10 dBi, TNC-MRP, w/ 18" Pigtail.
Features
-
Applications: Fixed base mounting.
- Antenna Type: Omni-Directional, DC grounded
- Frequency: 5.7-5.8 GHz
- Polarization: Vertical
- Impedance: 50 ohms
- Gain: 10 dBi
VSWR: <1.5:1 typical
- Vertical Beamwidth: 10 degrees
- Recommended Mounting Hardware: Pole Mounting Bracket, Supplied
- Antenna Connector: TNC male reverse polarity with 18 in. pigtail
and weatherproof boot
- Maximum Power Input: 20 Watts
- Wind Survival: 125 mph
- Antenna Dimensions: 17.9 L in. x .825 OD
- Bending Moment: 3.57 lbf-ft.
- Equivalent Flat Plate Area: 0.05 sq. ft.
- Lateral Thrust at Rated Wind: 4.83 lbf
- Radome: UV Stable, Black Fiberglass
- Weight: 0.43 lbs.
