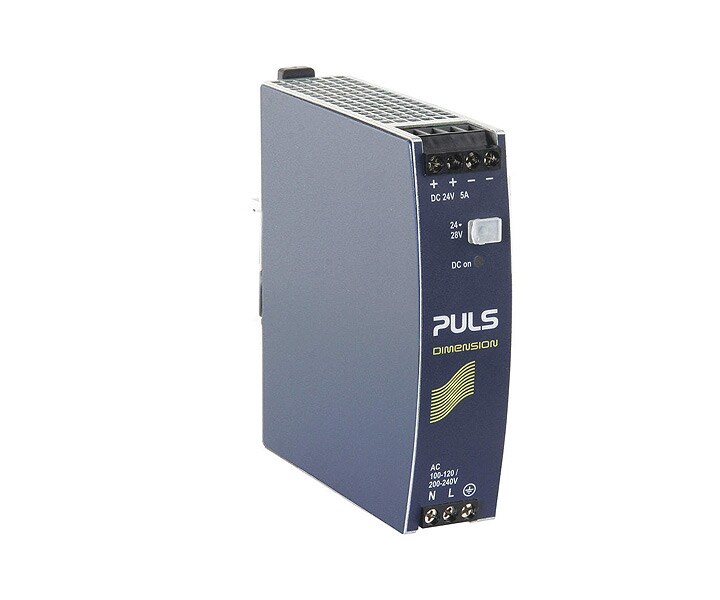

CS5.241 Power Supply
Product ID CS5.241
Availability
DESCRIPTIONPuls Dimension C-Series Single Phase Power Supply, 120W, 24VDC/5.0A Output, 100/240VAC Input, DIN-Rail Mount Metal Housing, -25 deg. to +70 deg. C, 20% Current Reserves, Class 1, Div. 2 Rated. The Dimension C-Series are cost optimized power supplies without compromising quality, reliability and performance. The C-Series is part of the Dimension power supply family, existing alongside the high featured Q-series. The C series includes all the essential basic functions and the devices have a power reserve of 20%. This extra current may even be used continuously at temperatures up to +45°C. The most important features are the small size, the high efficiency and the wide temperature range. The Auto-select input makes worldwide installation and usage very simple. Defects or system failures caused by wrongly set switches can not occur. Features & Benefits - AC 100-120 / 200-240V Auto Select Input
- Efficiency up to 90.2%
- Width only 32mm
- 20% Output Power Reserves
- Full Output Power Between -25°C and +60°C
- Minimal Inrush Current Surge
- 3-Year Manufacturer's Warranty
