OpenOCTOPUS 20/24/30/32/34 Switches
OpenOCTOPUS 20/24/30/32/34 Switches
Product ID OpenOCTOPUS 20/24/30/32/34
Availability

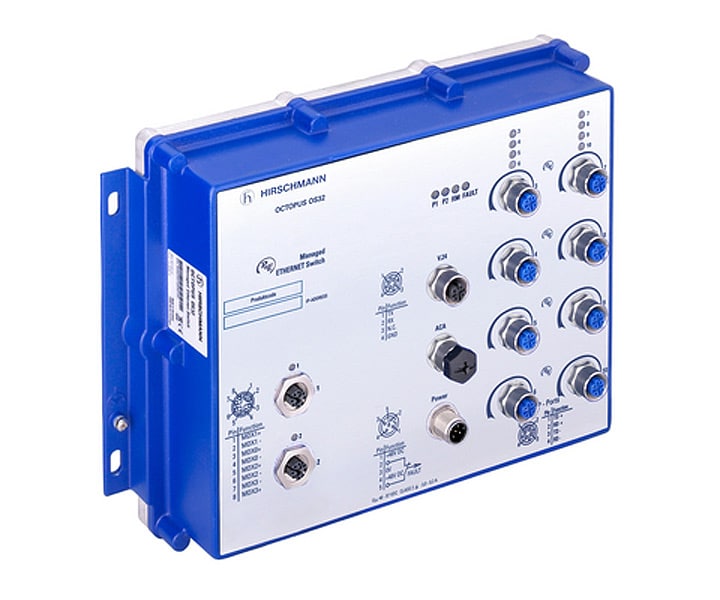

DESCRIPTIONHirschmann OpenOCTOPUS Managed IP 65 / IP 67 Switch in Accordance with IEEE 802.3, Store-and-Forward-Switching, Software Layer 2 Professional, Fast-Ethernet (10/100 MBit/s) and Gigabit-Ethernet (1000 MBit/s) ports. Contact INS for Configuration. OpenOCTOPUS enables you to quickly find the ideal IP67/65/54 switch for your requirements. The online configurator provides convenient drop-down lists from which you can easily choose features such as data rate, number of ports, power supply or industry-specific approvals. You also have the choice between easy-to-install unmanaged versions and powerful managed variants, running either Basic or Professional software from Hirschmann. Irrespective of which switch you choose from the more than 30 available in the OCTOPUS family, you are guaranteed fail-safe data communication, due to a robust design and SIL-certified software. OpenOCTOPUS Specially designed for use at the field level with automation networks, the switches in the OCTOPUS family ensure the highest industrial protection ratings (IP67, IP65 or IP54) regarding mechanical stress, humidity, dirt, dust, shock and vibrations. They are also capable of withstanding heat and cold, while fulfilling the strictest fire prevention requirements. The rugged design of the OCTOPUS switches are ideal for installing directly on machinery, outside of control cabinets and distribution boxes. The switches can be cascaded as often as required permitting implementation of decentralized networks with short paths to the respective devices to considerably reducing costs for cabling.
Benefits - Compact IP67/65/54 metal housing with high port density
- Gigabit and Fast Ethernet connections for twisted pair and fiber-optic cable
- Fast Ethernet ports for PoE or PoE Plus
- Vibration-proof M12 connection technology
- Pluggable SFPs for IP67 fiber-optic connectors according to IEC 63073-3-106 v1
- Unmanaged, Basic-managed and Professional-managed versions
- Data redundancy based on RSTP, MRP, Hiper Ring or Bypass Relay
- Port security and access protection
- Power supply (24 to 48 V DC or 72 to 110 V DC)
- External or integrated PoE power pack
- Redundant power supply
- LEDs for device, network, port and PoE status
- Operating temperature range of -40°C to +70°C
- Approvals for rail/road vehicles and ships
- SIL-certified software
- Fire protection in accordance with EN 45545, DIN 5510-2, NF F 16-101, NF F 16-102
- Compliant with EN 50155 and EN 50121-4
- Auto-configuration adapter for simple device replacement
- Can be ideally combined with Belden® cables and Lumberg Automation™ connectors
