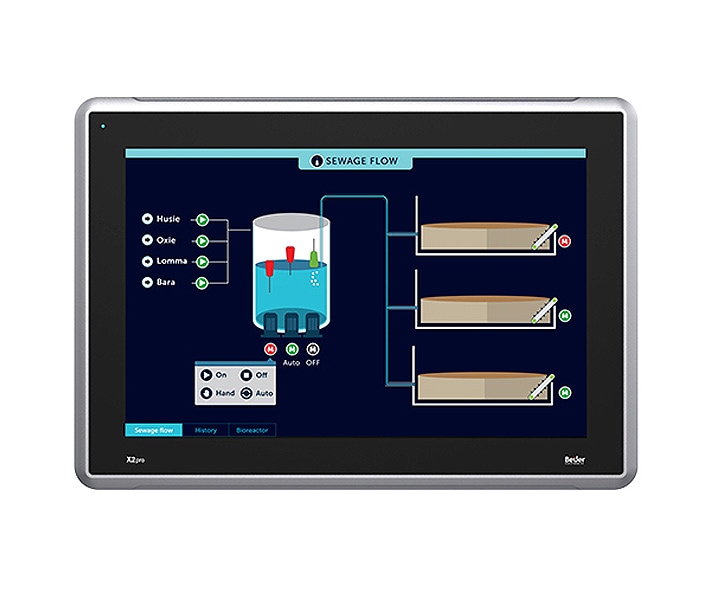

X2 pro Series HMI
X2 pro Series
Beijer Electronics X2 pro Series HMI with iX runtime, TFT-LCD touch screen, 1.5 GB application memory, -10 deg. C to +60 deg. C operating temperature. CE, FCC, KCC, UL approvals. DNV, KR, GL, LR, ABS, CCS marine approvals. (Please Specify Model.)
X2 pro High performance HMIs for all automation needs
X2 pro includes a range of high performance industrial panels
designed for demanding applications. All with the high
performance of powerful ARM Cortex-A9 processors, the latest
screen technology and a wide range of connectivity options to
cover all your automation needs.
X2 pro panels are available in 4, 7, 10, 12, 15 and 21 inches.
Details [ + / - ]
Features & Benefits
- Wide screen format
X2 panels offer wide
screen format, designed
to succeed the traditional
4:3 square aspect ratio.
- UL, CE, FCC and
The entire X2 range
offers a strong standard
certification with UL, CE,
FCC and KCC certificates.
- iX software – why
you’ll love our
The iX software
gives you smart
communication tools. iX combines
top-class vector graphics and easyto-
use functions that provide reliable
operation, and almost limitless
connectivity to your other equipment.
- Fast forward
Create integrated HMI,
control, drives and data
communication solutions with WARP
Engineering Studio. WARP automatically
configures all hardware, software and
communication in your application.
- Custom design or
Profile your brand
or go for neutral. X2
panels offer custom
designed or non-branded front foils,
as alternatives to the standard Beijer
Electronics branded versions.
- Powerful ARM
Powerful single or dual
core ARM Cortex-A9
fast screen changes and program
execution in demanding applications.
- Robust aluminum
housing with IP65, NEMA
4X/12 and UL Type 4X/12
front. Resistant to direct rain, snow or
wash-downs, dirt, grime and dust.
- Wide operating
temperature -10 deg. C
to +60 deg. C*
The wide -10 deg. C to
+60 deg. C operating
temperature range satisfies the
demands of most industries.
The X2 panels meet
extended classes of
marine certifications not
normally carried by HMIs, making them
suitable for all onboard locations.
- CiX CAN, Profibus
and MPI module
It’s easy to interface
using optional CiX
CAN, Profibus or MPI modules.
- SD memory card
Card holder and USB
connection are located
behind the lid on the
back of the panel for
smart memory expansion, project
backup and application loading.
