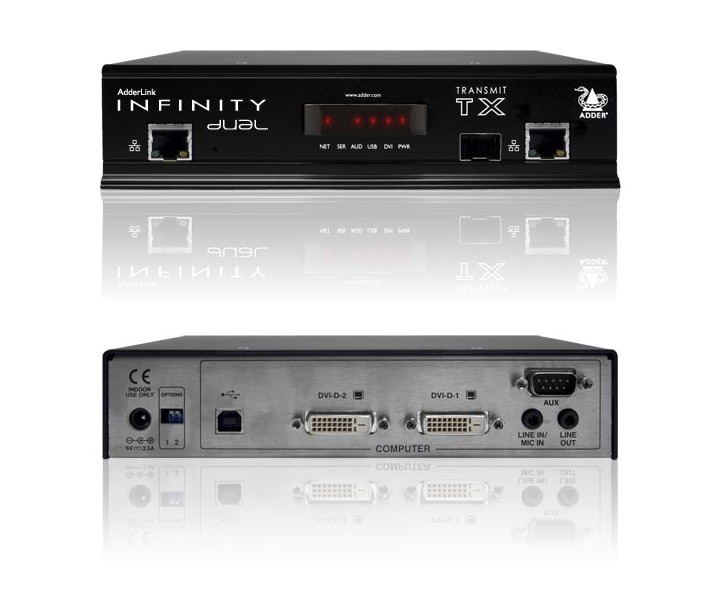

AdderLink INFINITY 2002T Network Dual-Monitor DVI Extender Transmitter, DVI and USB Extension Over Gigabit Ethernet, Gigabit Copper (RJ45) or Fiber (w/ SFP) Combo Port, Includes Magic Eye Functionality, Max Resolution is 1920 x 1200 For Two Single Link DVI-D or 2560 x 1600 For One Dual Link.
ADDERLink INFINITY dual allows a computer and its operator to be separated by almost any distance without any loss in capabilities, reduction in video resolution, quality or USB latency. Locate computers anywhere you like, share connections to computers, watch the interactions others have with computers, share control, collaborate, switch computers, and so on.
The product interfaces USB peripherals such as the keyboard, mouse or graphics tablet, together with DVI for the video display, over a standard layer 3 gigabit ethernet network, on copper or fiber.
Dual link or dual head DVI:
The AdderLink INFINITY features full DVI connectivity for either dual link or dual head applications. DVI delivers native digital video signals from your computer to your digital panel (LCD for example) without the need to convert signal types from the digital domain. By delivering native digital video throughout the AdderLink INFINITY network, you can be assured of accuracy on each and every pixel. The system supports either two Single Link DVI-D resolutions to a maximum of 1920 x 1200 @ 60Hz or one Dual Link to a maximum of 2560 x 1600 @ 60Hz.
Network Topology - CATx or fiber:

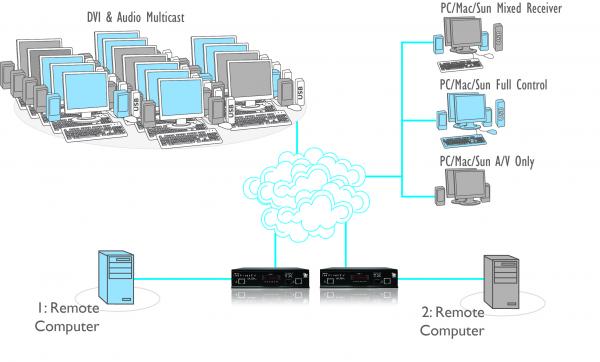

You can configure your network topology to best suit your needs. If you simply want to extend one computer Tx to one user Rx, you can do so by connecting both Tx and Rx units via a low cost CATx cable or fiber. Distance is not limited - a standard network cable will deliver IP traffic up to 100 meters away. If you want to go further, simply add a network switch in to achieve an additional 100 meters. This can be done many times if you wish.
The AdderLink INFINITY network is assumed to be a private network which you manage. As such, you can control maximum data rates generated by each Tx unit to ensure absolute stability.
Perfect Digital Video:
The AdderLink INFINITY makes use of multiple video encode technologies devised by Adder to deliver the very best picture available. Our encoding systems are spatially lossless, with 1:1 pixel mapping, so the digital video you receive is the same as the digital video leaving the remote computer.
Intelligent Video Encoding:
The AdderLink INFINITY uses optimal spatially lossless compression techniques to minimize network bandwidth usage and maximize the user experience. In most usage scenarios, with typical computer desktop applications, the AdderLink INFINITY uses remarkably little bandwidth. When it needs to deliver full screen motion video, it has the capability to process full screen moving video in real time.
Video Color Accuracy:
The received video color is the same as the sent color every time. There is never a loss of clarity with the AdderLink INFINITY. Because of this, color controlled environments such as visual media or scientific imaging can collaborate in real time on projects, handing control across seamlessly to other group members.
USB True Emulation:
The AdderLink INFINITY enables you to Connect any USB human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers. Furthermore, most other USB devices can also be attached, such as Mass Storage devices. Most USB devices fall into a selection of USB device classes, specific types of USB device class can be enabled or disabled from your AdderLink INFINITY network. In secure environments for example, you may wish to ban the use of Mass Storage devices, this is a simple procedure through the A.I.M. System.
Because of the efficient manner in which AdderLink INFINITY constructs data for IP transmission, it is perfectly reasonable to make use of standard off the shelf wireless routing to connect either Rx or Tx units to your network. Typical desktop applications (word processing, datasheet etc) will use very little bandwidth.
The AdderLink INFINITY units can be rack mounted, desktop mounted, wall mounted or attached to the back of your monitor using an optional VESA mounting carriage.
The AdderLink INFINITY uses USB 2.0 connectivity to interface with your keyboard and mouse, and any other peripheral you wish to use. USB is the most broadly used computer peripheral interface standard available.
Digital Stereo Audio:
AdderLink INFINITY delivers crystal clear stereo audio digitally across the network. This ensures continuous fidelity and channel separation between the Tx and Rx units, or even in Multicast environments.
